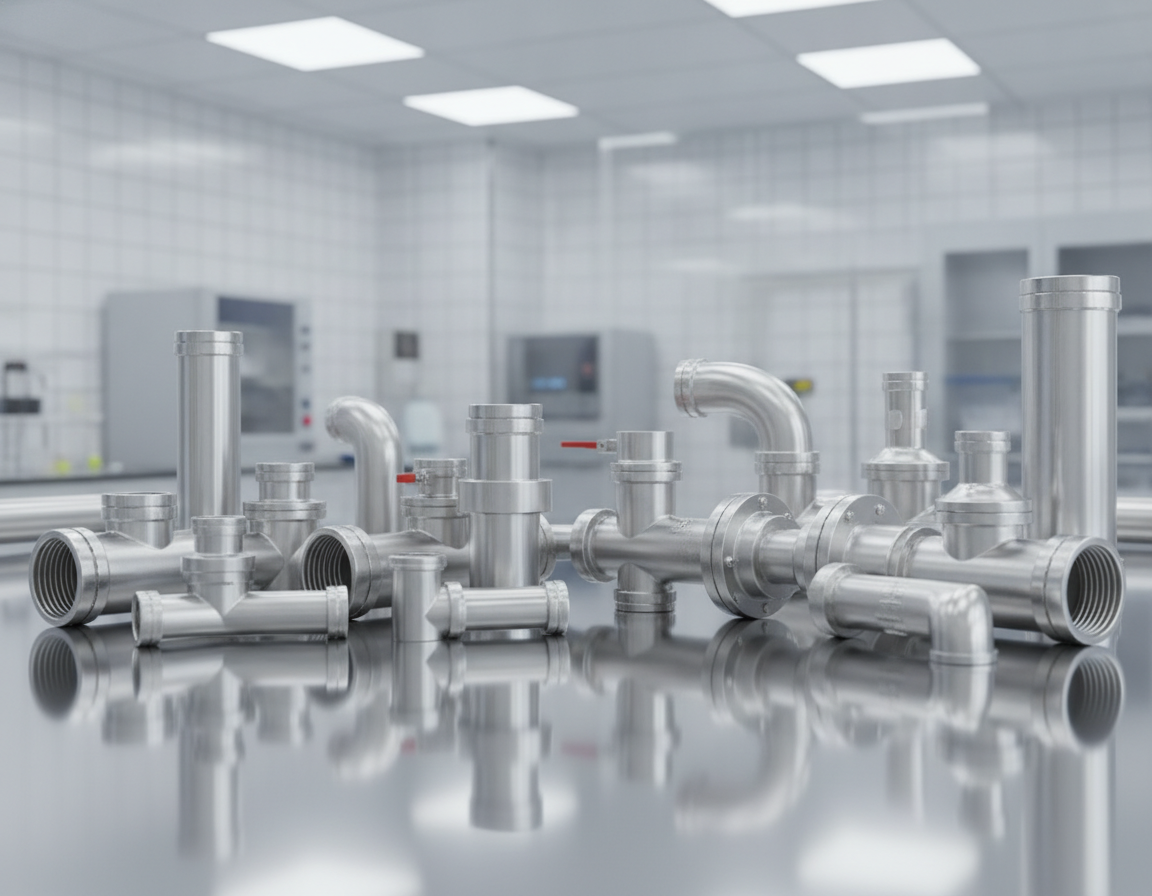

Across many industries, stainless steel sanitary pipe fittings are critical for keeping process systems safe. Components such as ferrules, clamps, sanitary valves, and fittings are designed to maintain clean fluid paths. They help minimize contamination risks and make cleaning easier.
Sanitary Pipe Fittings Stainless
Selecting the right Hygienic Fittings and Ss Sanitary Fittings affects product safety, uptime, and regulatory compliance. Material grade, surface finish, and connection compatibility are major selection factors. They affect the ease with which a system can be validated and maintained.
Reliable suppliers and detailed catalogs are essential for operations teams to select the right parts. Brands like CSI and distributors such as Installation Parts Supply provide essential information. They include catalog listings, lead times, and customer reviews to guide purchasing decisions for Sanitary Valves And Fittings.
Essential Takeaways
- Stainless Steel Sanitary Pipe Fittings are critical for contamination control in clean systems.
- Material grade and surface finish influence cleanability and corrosion resistance.
- Hygienic Fittings compatibility reduces downtime during maintenance and upgrades.
- Catalogs and reviews from CSI and Installation Parts Supply assist dependable sourcing.
- Proper selection of Sanitary Valves And Fittings improves regulatory compliance and product quality.
Overview Of Sanitary Pipe Fittings And Hygienic Fittings For Clean Systems
Sanitary systems depend on components designed for safety and efficiency. A sanitary fitting must have smooth surfaces, tight seals, and easy cleaning access. These features limit contamination and support clean-in-place and sterilize-in-place procedures.
Sanitary Fittings Definition And Purpose
Sanitary fittings, often called hygienic fittings, are specified to create crevice-free connections. That design helps prevent bacterial growth and helps maintain product purity during transfer and processing. Their design supports faster cleaning while reducing cross-contamination risk.
Key Industries Using Hygienic Fittings
Food processors depend on hygienic fittings to adhere to safety standards and prevent spoilage. Beverage manufacturers use them to protect flavor and shelf life. Pharmaceutical facilities choose fittings that meet high-level regulatory and validation requirements.
Biotech facilities require precise sanitary connections for cell culture and fermentation. These industries prioritize traceability, repeatable cleaning, and compatible materials.
Why Stainless Steel Is Used In Sanitary Applications
Stainless steel is favored for its corrosion resistance, mechanical strength, and cleanability. Grades like 304 and 316L resist chemicals and high temperatures. They also support smooth finishes, low Ra values, and electropolished surfaces.
Stainless components help minimize bacterial growth and extend service life during aggressive cleaning cycles. Tri Clover Sanitary Fittings and other standardized interfaces simplify assembly, inspection, and maintenance in hygienic systems.
Stainless Steel Sanitary Pipe Fittings Explained
In modern food, beverage, and pharmaceutical systems, stainless steel sanitary pipe fittings are widely required. The right material, product type, and surface finish are key to reducing contamination risk and making cleaning easier. This guide will cover common grades, typical component families, and finish options for hygienic performance.
Sanitary Stainless Steel Materials And Grades
Type 304 stainless steel provides corrosion resistance and mechanical strength, making it suitable for many general processing lines. It is commonly used for tanks, structural supports, and areas where product-contact risk is lower.
Type 316L provides better resistance to chloride pitting and crevice corrosion. Pharmaceutical manufacturers often choose 316L for wetted parts because its low carbon content helps reduce sensitization during welding.
Matching grades across components helps maintain corrosion resistance and prevents galvanic issues when parts are joined. Specifying 304 or 316L early in design helps control procurement of SS Sanitary Fittings and related parts.
Common Sanitary Fitting Types And Their Roles
Ferrules serve as the basic connection points for butt-weld and weld-in assemblies. They are available in 304 or 316L with polished IDs to match process piping.
Two-piece clamps, known as Tri-Clamp or Tri-Clover style, allow quick assembly and disassembly for cleaning. Couplings and sanitary weld fittings help create smooth lines and weld-ready connections.
Sanitary Hose Fittings and Sanitary Weld Fittings link flexible lines and permanent pipe runs. Sanitary Valves And Fittings control flow while preserving hygienic, cleanable profiles. Designing a system with compatible SS Sanitary Fittings minimizes downtime and leak risks.
Surface Finish And Cleanability Requirements
Surface roughness influences how residues adhere. A 32RA internal finish is a common spec that balances cost and cleanability for most food and beverage applications.
Electropolishing further smooths the stainless surface and improves passivity. This treatment minimizes microbial harborage and boosts corrosion resistance in aggressive environments.
Specifying matching finishes across ferrules, clamps, valves, and weld fittings supports hygienic integrity. When parts share matching 32RA or electropolished surfaces, cleaning validation is easier.
| Part | Typical Material | Standard Finish | Primary Use |
|---|---|---|---|
| Ferrules butt weld / weld-in | 304 stainless or 316L stainless | 32RA ID/OD | Pipe-end transitions and welded joints |
| Tri-Clamp two-piece clamps | 316L commonly preferred | 32RA finish or electropolished surface | Fast sanitary assembly and disassembly |
| Couplings and weld fittings | 304 / 316L | 32RA, electropolished optional | Permanent joins, elbows, tees |
| Sanitary flexible-line fittings | 316L often specified | Electropolished for product contact | Hose-to-pipe transfer connections |
| Hygienic valves and fittings | 316L on wetted surfaces | Polished internals | Hygienic flow control |
Tri Clover Fittings, Tri-Clamp Fittings Catalog, And Triclover Fitting Options
Tri Clover Pipe Fittings follow strict dimensional standards that support cross-manufacturer compatibility. Standards such as DIN 32676 and DIN 11864-3A define ferrule-face geometry and clamp interfaces. This supports sanitary lines remain leak-free and easy to maintain. They also simplify Triclover Fittings selection for food, beverage, and pharmaceutical applications.
When reviewing a Tri-Clamp Fittings Catalog, focus on size range, material grade, pressure ratings, and surface finish. Catalogs typically list two-piece clamps from 0.25″ to 4″, along with single-pin designs and corresponding gaskets. Ferrules are detailed with length and finish, with common options being 304 and 316L, finished to 32RA for enhanced cleanability.
Key items in catalogs cover clamps, ferrules, and gasket sets, sized in inches or DN. Small two-piece clamps may start under ten dollars, while larger clamps often fall in the low double-digit range. Each Triclover Fitting listing should show OAL, ID/OD finish, gasket compatibility, and material grade. This helps ensure the correct part is selected when ordering.
For high-pressure applications, double-bolt or heavy-duty two-piece clamps are available. These clamps include a 304 stainless body with brass nuts, balancing strength and corrosion resistance. For critical process lines, choose high-pressure clamps by rated clamp force and confirm compatibility with existing Tri Clover Fittings to avoid mismatches.
The choice of material influences both longevity and cleaning performance. 316L ferrules provide superior resistance to chlorides in harsh environments. Make sure the Tri-Clamp Fittings Catalog lists ferrule metallurgy, clamp construction, and finish details. This supports the selection of Tri Clover Pipe Fittings based on process conditions and application requirements.
Spec sheets should include clamp size charts, ferrule dimensions, and part numbers to streamline procurement. A well-organized catalog makes Triclover Fittings replacement faster and helps minimize downtime. Seek suppliers that publish detailed specs for each Tri Clover Fitting to ensure interchangeability across brands.
CSI Sanitary Fittings Compatibility And Sanitary Connections
Sanitary connections are essential for joining pipes, valves, pumps, and equipment in clean systems. The right joint type is critical for maintaining hygiene and efficiency. This section reviews common connection styles, brand interchangeability, and supplier reliability feedback.
Common connection types include Tri-Clamp connections, butt-weld fittings, socket-weld fittings, threaded links, and sanitary hose fittings. Each type has its own strengths and limitations regarding assembly speed, cleanability, and leak risk.
Clamp connections are popular because they assemble quickly and can be disassembled easily for cleaning. Welded joints, on the other hand, offer the smoothest internal profile for cleaning-in-place CIP and sanitizing-in-place SIP processes. Threaded fittings are generally more suitable for low-risk or utility applications where product contact is not critical. Sanitary hose fittings need matched ferrules and a secure Sanitary Coupling to help prevent leaks.
Brand compatibility matters when components from multiple suppliers are mixed. CSI Sanitary Fittings and Csi Fittings align with common standards like Tri-Clamp and DIN, making them generally interchangeable with other manufacturers. Steel & O’Brien publishes specification sheets that help confirm compatibility with major Tri-Clamp systems when the standards match.
To confirm compatibility, match nominal size, sealing face, material grade, and surface finish. Check datasheets for standards such as DIN 32676 and DIN 11864. Mismatched finishes or grades can cause corrosion, leakage, or product-residue traps.
Customer reviews can provide practical insight into supplier reliability and fulfillment speed. Reviews for CSI show consistent part quality and quick shipping, with some buyers experiencing next-day delivery on stock items. Other customers highlight responsive communication after order questions or technical inquiries.
When comparing suppliers, review lead times, documented quality, return policies, and after-sale support. Reliable shipping and clear spec sheets reduce downtime and avoid costly returns when purchasing Sanitary Connections, CSI Sanitary Fittings, or components from Steel & O’Brien.
| Sanitary Connection | Best Use | Cleaning Performance | Compatibility Notes |
|---|---|---|---|
| Clamp Tri-Clamp | Frequent disassembly; product contact lines | High cleanability with a removable gasketed seal | High if size and sealing face match; CSI fittings usually fit standard systems |
| Butt-Weld / Socket-Weld | Fixed sanitary piping where cleanability is critical | Excellent after correct weld finishing and polishing | Standardized dimensions ensure cross-brand fit for ferrules and couplings |
| Threaded fitting connection | Non-product-contact lines, utilities | Moderate because threads may trap residue | Use carefully and confirm grade, thread style, and finish |
| Hose with Ferrule | Flexible transfer lines and temporary connections | Good when ferrule, gasket, and clamp match | Requires matching ferrule profile and Sanitary Coupling for leak-free fit |
How To Select Sanitary Pipe Fittings Stainless And SS Sanitary Fittings
Choosing the right sanitary components requires a few focused steps. This guide guides you match size, material, and finish to your process needs. Use the metrics and checks below to limit downtime and ensure hygienic performance.
Begin with size and designation. Confirm DN and TC stamping and verify DN TC inch equivalents before ordering. Common catalog matches include DN20/DN25/DN32/DN40/DN50/DN65/DN100 mapped to 0.25″–4″ Tri-Clamp sizes. Check mating faces, gasket grooves, and flange profiles to confirm compatibility.
Material selection is critical. For routine food and beverage lines, 304 satisfies strength and cleanability needs. For pharmaceutical, chloride-exposed, or aggressive-cleaning processes, choose 316L for better corrosion resistance and weldability. Most suppliers list 316L ferrules and fittings as standard options for harsh environments.
Surface finish and gasket choice shape cleanability and seal life. Specify target finishes such as 32RA or electropolished surfaces. Match gasket materials like EPDM, PTFE, or silicone to temperature, chemical exposure, and product contact requirements. Confirm gasket cross-sections and clamp pressure to avoid leaks.
Assess pressure and clamp type. Standard sanitary clamps handle many everyday sanitary services. High-pressure service may require reinforced clamps, double-bolt designs, or specialized nuts and hardware. Review pressure ratings in the catalog and select clamps rated above operating pressure for safety margin.
Consider Copper Tri Clamp Fittings for niche needs. Copper tri clamp fittings can provide conductivity and antimicrobial benefits in certain systems. Before pairing copper with stainless lines, validate compatibility with cleaning agents, product chemistry, and dissimilar-metal corrosion risk.
Final checks reduce costs. Compare catalog part numbers against DN/TC inch equivalents, confirm grade markings, and request mill test reports when needed. Keep records of gasket type, finish specification, clamp pressure, and part numbers to streamline spare-parts ordering and maintenance.
Sanitary Coupling And Sanitary Weld Fittings Installation, Maintenance, And Best Practices
Ensuring the cleanliness and reliability of sanitary connections is critical. Follow defined assembly steps for tri-clamp assemblies and welded joints to reduce leaks and contamination risk. Keeping detailed records of materials, finishes, and maintenance is necessary for traceability and audits.
Proper assembly steps
Begin by thoroughly cleaning ferrule faces and checking gaskets for any defects. Place the gasket between the ferrule faces, ensuring the sealing surfaces are aligned. Next, fit the clamp and tighten by hand, then apply the specified torque with a calibrated wrench. For high-pressure applications, use double-bolt clamps with suitable hardware and follow recommended torque values to avoid over-compression.
Sanitary Weld Fittings best practices
When working with weld joints, prepare the tube ends to the specified Ra finish before welding. Use inert gas for purging to prevent oxidation on 316L stainless steel. After welding, inspect the weld contour and smoothness. If needed, rework rough spots through controlled grinding and electropolishing to restore low roughness and maintain hygiene.
Routine sanitary maintenance
Run CIP and SIP cycles according to process requirements. Inspect ferrule faces, clamps, and gaskets after thermal cycles, production runs, and scheduled cleaning. Replace gaskets when they show hardening, extrusion, cuts, or permanent deformation. After each maintenance activity, verify clamp torque, gasket seating, and alignment.
Troubleshooting common issues
Identify leaks by first checking clamp seating and gasket condition. Misaligned clamps can create uneven compression and leaks. To correct this, loosen the assembly, realign it, and retighten to the specified torque. For gasket extrusion or failure, ensure the correct durometer and material are used, and confirm the groove dimensions match the ferrule specifications.
Addressing surface damage
Surface damage such as scratches, pitting, or crevice corrosion can hold microorganisms. Minor scratches may be polished out and electropolished to restore the required Ra level. Replace components if pitting penetrates the surface or if repair polishing would remove too much material.
Documentation and records
Keep detailed records of material grades, surface finishes, gasket types, clamp models, and service dates. Maintain calibration records for torque tools and welding equipment. Accurate records support compliance, audits, validation, and faster troubleshooting.
| Maintenance Task | Interval | Primary Action | Important Notes |
|---|---|---|---|
| Clamp torque verification | After assembly and monthly | Verify with a calibrated torque wrench | Use manufacturer torque table for Sanitary Coupling sizes |
| Gasket condition check | At scheduled intervals or whenever defects appear | Look for damage, compression set, or extrusion | Replace only with compatible gasket material |
| Ra and surface condition check | After weld work and during quarterly checks | Measure roughness and inspect visually | Restore finish when roughness exceeds the process specification |
| Weld inspection | After installation and during annual review | Inspect for undercut, porosity, profile | Repair and re-polish Sanitary Weld Fittings as needed |
| CIP and SIP validation | According to each cleaning or sterilization cycle | Record process parameters during each cycle | Document results for validation and regulatory review |
Where To Buy Sanitary Fittings: Catalogs, CSI Fittings, And Installation Parts Supply
Starting with a detailed catalogue review is key. Look for a Sanitary Fittings Catalog that includes material grade, finish, and pressure rating. It should also mention standards like DIN 32676 or DIN 11864-3A. Before ordering, confirm item codes, stock status, lead times, and compatibility to avoid delays.
When reviewing a Tri-Clamp Fittings Catalog, compare clamp type, gasket compatibility, dimensional specifications, and material grade. Check if ferrules and fittings have surface finishes like 32RA or electropolished. A detailed catalog keeps matching gaskets and clamps easier during assembly.
Evaluate Csi Fittings by reading independent reviews, checking supplier lead times, and comparing published specifications. Many buyers report next-day shipping for common parts and responsive customer service on quality questions. Confirm return terms for precision components to protect tight-tolerance projects.
Use the following example listing to compare market pricing and common stocking sizes. These prices reflect typical catalog-style entries and help set realistic procurement budgets.
| Catalog Item | Nominal Size | Material | Finish | Typical Catalog Price |
|---|---|---|---|---|
| Two-piece single-pin clamp | Quarter-inch to three-quarter-inch | 304 stainless | Standard catalog finish | 3.91 USD |
| Two-piece single-pin sanitary clamp | 1 inch | 304 | Standard | $4.91 |
| Two-piece single-pin clamp | 2 inch | 304 | Standard finish | Approx. $5.99 |
| Single-pin two-piece clamp | 2.5 inch | 304 | Standard | $6.93 |
| Two-piece single-pin sanitary clamp | Three-inch size | 304 | Standard finish | Approx. $7.54 |
| Two-piece single-pin clamp | Four-inch size | 304 | Standard finish | $9.16 |
| Tri-Clamp ferrule | 2 inch with 1.125 inch OAL | 316L stainless | 32RA ID and OD | 4.24 USD |
| TC sanitary ferrule | 2″ — 1.125″ OAL | 304 | 32RA internal and external finish | $4.06 |
| Tri-Clamp ferrule | 3 inch | 316L stainless | 32RA ID and OD | 6.15 USD |
| High-pressure double-bolt clamp | 1.5″ | Type 316 stainless steel | Polished finish | 12.93 USD |
| High-pressure sanitary clamp | 2″ | 316 stainless | Polished finish | $14.62 |
| Double-bolt high-pressure clamp | 3″ | 316 | Polished finish | $20.26 |
Installation Parts Supply is a U.S.-based supplier for sanitary valves, ferrules, clamps, and related process parts. Use their online listings to confirm availability, surface finishes, material grades, and exact pricing for specific Tri-Clamp Fittings Catalog items. Before purchasing, review product pages to cross-check pressure ratings, gasket materials, and fitting compatibility.
When sourcing parts, choose catalogs that show clear specs for 304 versus 316L, specify surface finish, and cite conforming standards. A targeted search through a Sanitary Fittings Catalog will streamline procurement and reduce returns on critical process components.
Conclusion
Stainless Steel Sanitary Pipe Fittings are necessary for maintaining cleanliness in various industries. The choice between 304 and 316L materials, along with surface finishes like 32RA or electropolishing, improves cleanability. This minimizes contamination risks significantly. Ensuring that Tri Clover Fittings and other components meet standards like DIN 32676 is vital for tight Sanitary Connections and easy interchangeability.
When selecting fittings, review the material, finish, and connection type. This includes Tri-Clamp, weld, hose, or threaded connections, based on pressure, product contact, and regulatory requirements. Use high-pressure clamps where process pressure or safety margins require them. Keeping gaskets, clamps, and ferrules consistent helps prevent leaks and simplifies maintenance. Proper installation and regular cleaning extend the lifespan of fittings and ensure compliance with hygiene standards.
Catalogs provide useful pricing for two-piece clamps, ferrules, and high-pressure options. This helps balance cost, reliability, and availability in procurement decisions. When looking for where to buy sanitary fittings, prioritize reputable U.S. suppliers. Those suppliers should list specifications, finishes, standards, and part details to confirm compatibility with CSI and other branded fittings.
Following these guidelines helps streamline system design, sourcing, and maintenance. Clear specifications, consistent materials, and trusted sources limit downtime. This supports product quality in hygienic processing environments.
