An intermittently bonded ribbon production system is used to manufacture flexible fiber groups for contemporary, high-count cable architectures. It maintains organized fiber alignment for expedited mass fusion splicing, yet allows the fiber group to remain flexible within a compact cable core.
In contrast with fully bonded ribbons, intermittent bonded ribbons feature discrete bonding points at predetermined intervals. This strategic placement enables the fibers to maintain alignment while the ribbon can flexibly roll into circular loose tubes and other confined spaces.
Network designers use this approach when faced with constraints in duct space, splice closures, and equipment racks. A properly engineered ribbon cable facilitates dense network deployments in data centers, telecom backbones, metro networks, FTTx feeder systems, and 5G transport networks.
Fiber Coloring Machine Fibers in Stainless Steel Tube Fiber Coloring Machine
Important Points
- An intermittently bonded ribbon line enables flexible, high-density fiber arrangements.
- Discrete bond points keep optical fibers organized without making the ribbon stiff.
- Flexible ribbons help cable makers fit more fibers into compact circular cable designs.
- Mass fusion splicing is faster when fiber order remains stable and clear.
- Ribbon cable systems support data centers, telecom backbones, and fiber access networks.
Intermittent Bonded Ribbon Production Line Overview
Intermittently bonded ribbon manufacturing allows the creation of fiber designs that combine high density with practical handling. This method involves applying bond points at controlled intervals, allowing for the movement of fiber subunits between these points.
This production approach supports the incorporation of a higher number of fibers within constrained duct spaces. It also preserves the organized ribbon structure, essential for efficient splicing and cable assembly processes.
How Does An Intermittently Bonded Optical Fiber Ribbon Work?
An intermittent bonded fiber ribbon connects adjacent fibers at specific intervals along its length. The segments between these bonds remain relatively free, enabling the ribbon to adopt various configurations without rigidification.
This configuration is often referred to as a rollable, flexible, or spider web ribbon. It contrasts with the conventional flat ribbon cable, which maintains a fixed profile along its entire length.
During splicing, the fibers can be arranged into a flat ribbon for mass fusion operations. In cable production, the same fibers can be packed into compact bundles, optimizing space utilization within the cable.
Why High-Density Networks Use Flexible Ribbon Technology
Network architects face the challenge of increasing capacity within densely populated conduits, data centers, and access routes. The flexible nature of a flat cable structure helps ribbon groups pack into smaller cable cores, preserving fiber order.
Fiber density ratio represents a critical metric for network builders, comparing the space occupied by fibers to the total cable area. Intermittent bonding can improve this ratio, allowing ribbon groups to occupy available spaces within the cable.
For network installers, high-density fiber cables reduce the number of cables required for a given route. This design also supports high fiber counts without necessitating a rigid ribbon stack.

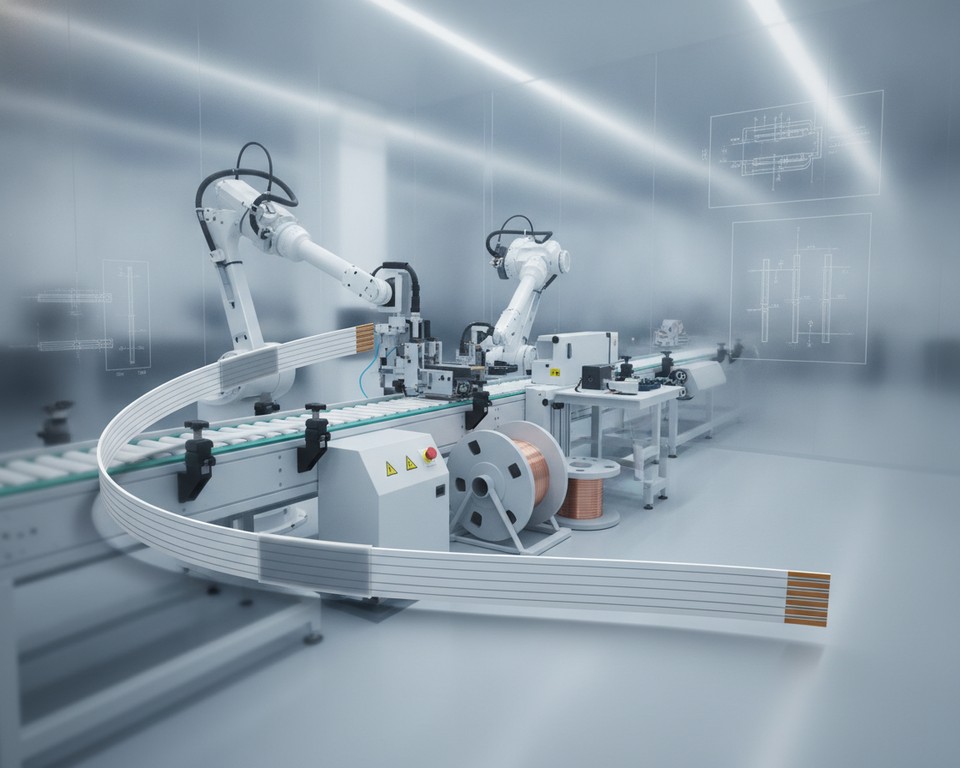

Intermittent Bonded Ribbon Production Line
| Ribbon Characteristic | Intermittently Bonded Design | Continuously Bonded Ribbon |
|---|---|---|
| Bond arrangement | Discrete bonds at predetermined intervals | Bonding maintained continuously along the ribbon |
| Fiber configuration between bond points | Can curl or roll to fit compact cable spaces | Stays mainly flat and planar |
| Splice preparation position | Can return to a flat format for mass fusion splicing | Is continuously maintained in a flat ribbon shape |
| Cable packing function | Supports dense, flexible subunit placement | Uses a more rigid ribbon stack arrangement |
| Common cable application | Flexible flat cable and high-density fiber cable designs | Traditional flat ribbon cable designs |
Intermittently Bonded Ribbon Materials And Construction
A flexible bonded ribbon integrates precise fiber placement with adaptable bonding points. Its architecture enables high-density cable structures while allowing effortless separation during handling, routing, and splicing.
Choosing appropriate materials significantly influences ribbon width, peel characteristics, and durability. Each optical fiber subunit must keep its fibers properly positioned without imparting undue stiffness to the ribbon.
Fiber Count And Subunit Arrangement
Intermittent bonded ribbons can accommodate 4, 8, 12, 24, or up to 36 fibers. The choice of fiber count is determined by cable capacity, available duct space, and the requirements of subsequent mass fusion splicing.
A typical 12-fiber design may use six subunits, with two adjacent fibers in each subunit. The fibers within a subunit may be in contact or separated by no more than one and a half times the fiber diameter.
The inclusion of small gaps between subunits ensures ribbon flexibility. These gaps typically span from 5 to 100 micrometers, while the fibers remain aligned side by side across the ribbon width.
| Ribbon Construction Element | Typical Configuration | Manufacturing Purpose |
|---|---|---|
| Number of fibers | Configurations of 4, 8, 12, 24, or up to 36 fibers | Supports required cable density and fusion splice capacity |
| Subunit configuration | Two neighboring fibers in each optical fiber subunit | Maintains predictable separation between subunits |
| Fiber spacing in a subunit | Fibers touching or separated by up to 1.5 diameters | Supports a small and consistent subunit profile |
| Gap between subunits | Approximately 5 to 100 micrometers | Allows greater movement and flexibility near bond points |
UV-Curable Resin With Wet-On-Wet Bonding
The coating and bond systems frequently employ UV-curable resin systems. Wet-on-wet bonding involves applying the bond material to the uncured subunit coating, which then cures together under UV energy.
This process creates a diffusion zone where the materials interact. For intermittent bonded ribbons, this zone can range from 2 to 50 micrometers, with 5 to 15 micrometers being the typical focused process range.
The UV-curable materials can combine at the interface before curing. This encourages molecular entanglement between the bond and the optical fiber subunit coating, resulting in bonds that are both secure and flexible.
Main Equipment For Intermittent Bonded Ribbon Production
An optical ribbon line integrates advanced motion control with meticulous material handling. Each station maintains fiber cleanliness, alignment, and stability from the initial payoff to the final winding.
The line equipment manages adjacent fiber placement, subunit coating, intermittent bonding, UV curing, cooling, inspection, and take-up. This sequential process enables manufacturers to produce flexible custom ribbon cable, preserving the integrity of the fiber order.
Fiber Payoff And Tension Control Equipment
Fiber payoff systems feed individual optical fibers at a consistent rate from spools. Guides, rollers, and tension sensors prevent sudden pulls, averting twist, slack, or uneven spacing.
During ribbon production, maintaining balanced fiber paths before alignment is critical. Stable tension is essential for forming flat subunits and ensuring accurate color sequence control.
Coating Die With Discrete Bond Applicator
The coating die applies a UV-curable material around groups of two or more fibers. This material defines subunits while maintaining fibers in a flat, parallel layout.
The discrete bond applicator subsequently deposits a second resin between neighboring subunits at planned intervals. This spacing allows the ribbon to flex and separate when needed, a critical aspect of custom ribbon cable design.
| Line Equipment | Main Function | Production Benefit |
|---|---|---|
| Payoff tension system | Feeds fibers at controlled tension | Minimizes twisting and uneven fiber loading |
| Subunit coating die | Creates coated optical fiber subunits | Keeps subunit dimensions and shape consistent |
| Intermittent bond applicator | Places bonding resin at predetermined locations | Creates flexible links between adjacent subunits |
| UV curing, cooling, and take-up unit | Cures, cools, inspects, and winds the ribbon | Maintains bond integrity while preserving fiber sequence |
UV Curing, Cooling, And Ribbon Winding Equipment
UV energy cures the subunit coating and intermittent bonds while the resin is wet. This wet-on-wet process forms a cohesive interface between materials, influencing bond strength.
Cooling equipment lowers ribbon temperature before inspection and winding. The fiber ribbon line may also employ vision checks to monitor width, bond position, and surface quality.
Take-up equipment winds the finished ribbon with low, even tension. Proper winding safeguards the cured structure, ensuring the custom ribbon cable is ready for later cabling, splicing, or connector assembly.
Fiber Alignment, Preparation, And Color Sequence Management
A stable ribbon cable begins with fiber preparation. Each strand must enter the assembly clean, centered, and in the correct sequence before the coating and bonding processes commence.
Managing Fiber Identification For Splicing And Maintenance
Consistent fiber color identification is indispensable for splicing, testing, and maintenance operations. The standard 12-fiber sequence, typically consisting of blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua, facilitates swift identification.
When fiber counts increase, the sequence may be repeated within controlled subunits. This method ensures that each ribbon cable remains organized within splice trays, closures, and cable connector layouts.
| Fiber Position | Standard Color | Identification Purpose |
|---|---|---|
| 1 | Blue | Marks the first position in the standard color order |
| 2 | Standard orange | Allows quick identification during handling |
| 3 | Green | Supports the required planar sequence |
| 04 | Brown | Supports confirmation of subunit position |
| 05 | Slate | Creates a clear mid-sequence identifier |
| 6 | Standard white | Supports clear visibility during inspection |
| 7 | Standard red | Improves traceability in splicing records |
| 08 | Black | Helps technicians recognize sequence position in trays |
| 9 | Standard yellow | Assists field restoration activities |
| Position 10 | Standard violet | Clearly identifies fibers near the end of the sequence |
| 11 | Rose | Supports high-count ribbon identification |
| 12 | Aqua | Completes the standard color order |
Preventing Fiber Twisting And Uneven Tension
Fiber guides and payoff units are important in maintaining fibers in a flat, side-by-side configuration. This prevents twist, crossing, and gaps that could alter the ribbon’s width or distort the bond pattern.
Operators closely monitor tension across every path before the fibers reach the coating die. Proper alignment is critical for mass fusion splicing and ensures the finished ribbon cable fits its intended cable connector system.
UV Curing And Intermittent Bond Application Process
The intermittent bonding process joins fiber subunits without solidifying the ribbon into a rigid form. This method allows dense routing and ensures dependable handling within a flexible flat cable. It also aids in maintaining the planned fiber layout during subsequent cable assembly.
Bond Application At Controlled Intervals
The production equipment applies bonding points at intervals ranging from 10 mm to 1,000 mm. The bond locations may stagger along the ribbon’s length. This arrangement provides support to adjacent subunits while allowing sufficient free length for movement.
A controlled applicator deposits a measured amount of UV-curable resin at each bond point. Bonds often exhibit a diamond-like shape, with wider centers and narrower ends. The tapered ends reduce sudden stress transitions when the cable bends or twists.
Building Strong Yet Flexible Bond Interfaces
Wet-on-wet processing requires applying a second material before the first subunit coating cures. The uncured layers can blend before undergoing a shared UV curing step. This approach fosters a gradual interface, unlike a sharp material boundary.
This gradual interface influences various properties, including color, Young’s modulus, and surface friction. Bond ends may feature saddle-like surfaces with both convex and concave curves. These features improve resistance to bond peeling while facilitating separation when required.
Controlling UV Curing Performance
The UV lamps must supply consistent energy across the ribbon. Factors such as line speed, lamp output, resin volume, and exposure time impact the bond’s quality. Selecting the right UV-curable resin ensures rapid curing without compromising the fiber coating.
Operators closely monitor bond shape, cure level, and ribbon flexibility during production. The cured cable should transition smoothly from a flat plane to various forms without bond damage. Controlled curing ensures consistent handling throughout winding and downstream processing.
Flexible Flat Cable And Fiber Ribbon Quality Control
Maintaining the integrity of each flat ribbon cable is a meticulous process. It involves checking the cable’s flexibility and its readiness for subsequent splicing operations. During production, operators assess the fiber count, color sequence, and precise positioning of each fiber. They also evaluate the cable’s winding condition, ensuring its optimal state for assembly.
Routine inspection is essential in identifying any defects in the coating, uneven tension, or misplaced bonds. These issues, if left unaddressed, could compromise the cable’s performance in subsequent stages of production.
Checking Bond Spacing, Ribbon Width, And Thickness
The distance between bonding points is a critical parameter, requiring adherence to a specific design range. This spacing is essential for the cable’s flexibility, ensuring that the fibers remain aligned within their designated subunits during bending.
Inspection procedures are used to confirm that each bond correctly connects adjacent subunits. This attention to detail ensures that the ribbon lays flat, facilitating smooth mass fusion splicing processes.
| Inspection Area | Items Checked | Production Value |
|---|---|---|
| Fiber identification | Count, identification color, and fiber position | Supports correct splicing and maintenance work |
| Bonding pattern | Bond position, interval, and connection between subunits | Maintains flexibility and fiber organization |
| Ribbon geometry | Dimensional width, thickness, and flatness | Helps the ribbon fit handling and splicing tools |
| Finished surface quality | Cure quality, coating completeness, and visible defects | Reduces handling damage during winding |
Mechanical And Optical Performance Testing
Mechanical testing focuses on bond separation, cohesive strength, elongation, and handling behavior. These evaluations are essential to confirm that the manufacturing process controls are consistent across similar designs of flat cables.
Optical testing includes evaluations after bonding and curing. It ensures that the core, cladding, primary coating, secondary coating, and color layer are adequately protected throughout the manufacturing process.
Attenuation checks and splice-related handling tests are integral to routine inspections. The quality of winding is also scrutinized to ensure that the finished flat ribbon cable is in a controlled condition for assembly.
Production Efficiency, Automation, And Precision Winding
High-efficiency ribbon production relies on a unified production line. Each stage, from fiber payoff to inspection and take-up, must harmonize seamlessly. This synchronization ensures the preservation of fiber geometry and facilitates consistent output, critical for high-speed data transmission cables.
Process Data Monitoring And Line Synchronization
Production controls coordinate payoff speed, fiber tension, resin delivery, bond placement, UV curing, cooling, and take-up. Adjustments are made in real time to maintain ribbon stability when speed variations occur at any station.
Production records meticulously document fiber color sequences, bond intervals, cure settings, ribbon dimensions, and winding status. This detailed history allows operators to track the production of each custom ribbon cable.
- Controlled payoff tension reduces fiber stretching and slack.
- Controlled bond timing maintains regular intervals between bond points.
- Dimensional checks detect width or thickness deviations promptly.
- Winding data facilitates lot tracking and downstream handling.
Winding Ribbon For Downstream Cable Production
A cable precision winder ensures the ribbon is wound onto a spool with uniform tension and controlled movement. This method prevents edge crushing, layer crossing, and sudden pulls during subsequent cable processing.
Finished ribbon units can be stacked, rolled, or loaded into central tube and loose tube designs. These configurations enable the creation of high-speed data transmission cables, even in areas where duct additions are impractical.
For customized ribbon products, the winding pattern must align with subsequent processes. Proper spool buildup is essential for smooth payout during stranding, tube loading, and cable assembly.
| Process Area | Process Control Focus | Downstream Benefit |
|---|---|---|
| Fiber payoff | Consistent tension with correct fiber color order | Consistent ribbon organization during cable assembly |
| Bonding stage | Stable spacing with repeatable resin deposition | Predictable ribbon flexibility during handling |
| UV curing | Stable UV lamp output and cure exposure | Properly cured bonds before ribbon winding |
| Cable precision winder | Even traverse, spool tension, and layer control | Smooth payout for central tube or loose tube loading |
Ribbon Cable Applications, Splicing, And Connector Planning
Ribbon fiber plays an important role in dense links within data centers, telecom backbones, metro rings, and FTTx feeder routes. It also excels in indoor FTTH runs, 5G fronthaul, and outdoor point-to-point networks where space is at a premium.
A carefully designed ribbon cable assembly enables crews to manage high fiber counts efficiently, without increasing bulk. Each high-speed data transmission cable must align with the site’s route, enclosure space, and future expansion plans.
Advantages Of Mass Fusion Splicing
A ribbon fusion splicer facilitates the joining of an entire ribbon in a single operation. For a 12-fiber ribbon, a matching cleaver can prepare all 12 fibers simultaneously before the automated fusion process commences.
This approach minimizes handling time and ensures consistent fiber alignment. Splice loss is reported to remain below 0.05 to 0.10 dB per fiber, contingent upon controlled preparation, cleaning, and machine settings.
In contrast, loose tube cable necessitates a different strategy at the splice cassette. Technicians must separate the fibers, then splice them individually, which prolongs the ribbon cable assembly process.
Planning Connections For Dense Fiber Links
High-density fiber links often employ MPO or MTP trunks, harnesses, fanout cables, and cassette modules. The chosen cable connector must align with the fiber count, polarity method, connector gender, and fiber type.
Connection planning also includes transceiver requirements and the full link loss budget. A high-speed data transmission cable, when used with parallel optics, demands a clear polarity path from equipment port to patch panel.
| Network Planning Item | Primary Control | Common Application |
|---|---|---|
| Ribbon fiber count | Fusion splice capacity and cassette choice | 12-fiber and 24-fiber backbone links |
| MPO/MTP cable connector | Polarity, gender, and port compatibility | High-density data center and 5G equipment-room connections |
| Fanout or harness cable | Breakout of multi-fiber links into individual fiber connections | Network switch connections and patch fields |
| Optical link loss budget | Permitted optical loss across splices, connectors, and fiber | High-speed data transmission cable routes |
Shanghai Weiye OFC Equipment For Fiber Ribbon Line Projects
Shanghai Weiye OFC Equipment, also known as SHWY, specializes in machinery for the production of optical fibers and cables, serving markets in the United States and globally. Its offerings are designed to ensure consistent processing, facilitate clear operator control, and enable seamless integration into production lines.
For manufacturers planning an intermittent bonded ribbon production line, SHWY equips each phase of ribbon handling, curing, and winding with suitable machinery.
SHWY Experience With Optical Fiber And Cable Machinery
Operating since 1998, SHWY’s journey in the industry has been marked by significant milestones. By 2012, its annual turnover surpassed 200 million CNY, strengthening its position within a prominent Chinese fiber and cable conglomerate as a joint venture.
SHWY became independent in 2020, relocating to a state-of-the-art facility in central Shanghai. This move underscored its commitment to advancing equipment research, manufacturing, and process application while supporting operational stability.
Relevant Production Equipment From SHWY
The SHWY equipment portfolio includes a diverse range of equipment, including fiber draw towers, coloring machines, secondary coating lines, SZ stranding equipment, and cable sheathing lines. Notably, it also features a fiber ribbon line tailored for flat, high-count fiber formats.
Within ribbon cable production, a cable precision winder plays a critical role in maintaining orderly package buildup and controlled tension. This ensures safer transport and more consistent feeding into subsequent cable production stages.
The company’s extensive range further includes FTTH lines, indoor cable equipment, and OPGW fiber-in-stainless-steel-tube systems. These options enable manufacturers to integrate an intermittent bonded ribbon production line with complementary cable processes.
Summary
A complete intermittent bonded ribbon line brings together fiber alignment, controlled bonding, UV curing, inspection, and precision winding into a unified process. Each step ensures the preservation of fiber order while maintaining the necessary bendability for dense cable designs. This combination is critical for the creation of high-density optical networks.
The resultant ribbon cable supports efficient mass fusion splicing and organized fiber management. It is ideal for applications with high fiber counts, confined ducts, limited tray space, and frequent splice points. This makes it a cornerstone in many high-density ribbon cable routes.
Effective project planning extends beyond the production line. It encompasses the cable structure, closure capacity, fusion tools, test methodologies, labeling, and restoration records. These elements must align with the planned network architecture for seamless integration.
